1937 Morgan 4/4 Series One Coventry Climax 1122cc
Email me:
Click on any image to see larger view

Starter Motor
Picture 1
Picture 2
Picture 3
Picture 4
Picture 5
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Lucas M35A AD7 250,445
7-7 (July 1937)

Starter switch is possibly wrong,
could be a Lucas 764154 starter switch
with cable stop plate

.

.

12V

Dynamo
Lucas C45NV L 228051 12V 7 5
Made in July 1935
.
.
click to enlarge click to enlarge click to enlarge click to enlarge
.

.

3 wire, bakelite cover over terminals
(Lucas 238234?)
.

3.625" inner pulley,
4.5" overall diameter
.

Alloy, no manufacturers mark
.

.

1939 9, 10, 12, 14Hp Standard = Lucas C45NV/3 L/1
1938 Singer Bantam & Ten = Lucas C45NV/3 L/1
Morris 10cwt Van 1935 = Lucas C45NV/3 L/1
1937-39 Hillman Minx = Lucas C45NV/3 L/1

Horn

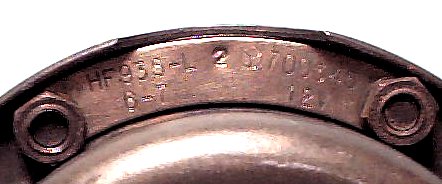

Lucas HF935-L 2 700,345
12V 6-7 (June 1937)
.
.
click to enlarge click to enlarge click to enlarge click to enlarge
.

.
.

.
.

.

Batteries
Lucas SLTW11E x 2
no image
6V x 2 in series
8 3/4"L x 6 7/8"W x 7 1/2"H
Moulded in "MILAM"

.

Dipswitch
Lucas 359498
Lucas 359498
Lucas 359498
1937 Dipswitch
1937 Dipswitch
(engine side)
.
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
.

.

.

.

Original 1937 dipswitch
must be Lucas FS22/L3 BN (359,498) due to
shape of mounting plate
.

.

Gasket set
Payen HS154 gasket set
click to enlarge
.
